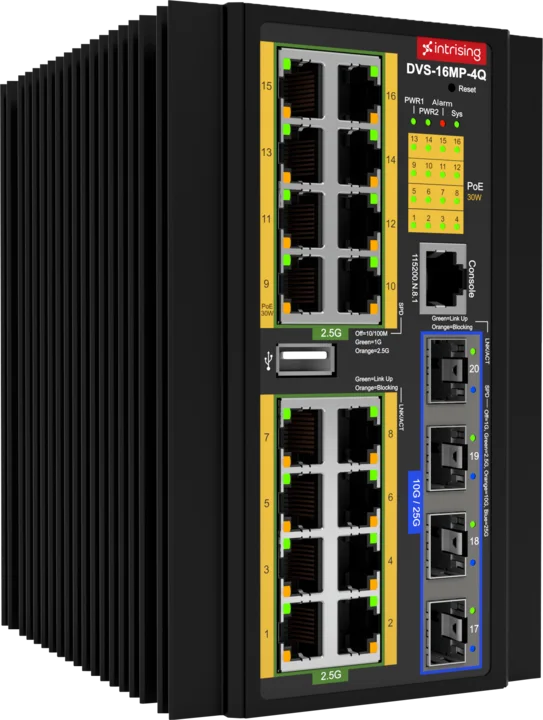

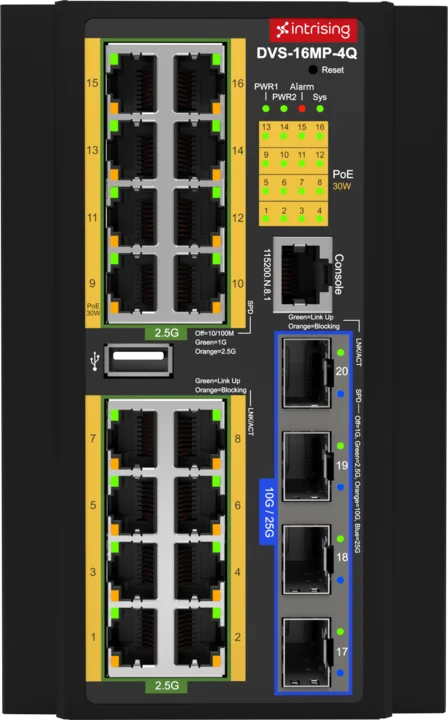

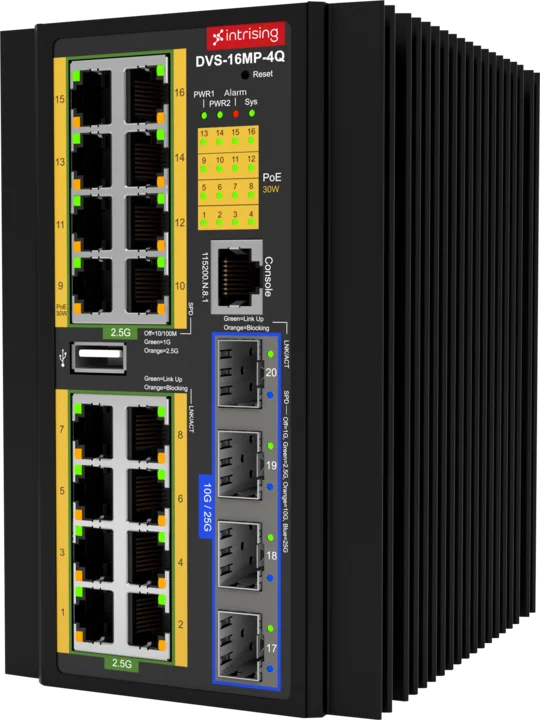

DVS-16MP-4Q

Industrial 16x2.5G + 4x25G L2+/L3 Managed PoE+ Switch

16 2.5G BASE-T(X) ports and 4 25G SFP+ ports
16 ports support IEEE802.3at/af PoE+ up to 30W per port
Dual power input for redundancy
Advanced PoE management functions, such as PD detection, scheduling and health tracking
G.8032 ERPS Ring (recovery time < 50ms) for network redundancy
MSTP up to 16 instances and backward compatible STP and RSTP
DHCP server/client/relay, support for additional option 66/82 for network security
Dynamic IEEE 802.3ad LACP link aggregation and static link aggregation for optimum bandwidth utilization
Support for IEEE802.1Q VLAN and GVRP
IGMP snooping v1/v2/v3, IGMP query and MLD snooping v1/v2
QoS bandwidth control by 802.1p CoS(Class of service) and DiffServ, support addition traffic storm control
Remote management over Web browser, Telnet, SSH and CLI
Logging event and warning by exception through SNMP trap and relay output automatically
Access control lists (ACL) support L2 and L3 packet filtering increasing the flexibility and security of network management
Security features based on IEEE802.1X authentication with RADIUS and TACACS+
SNMPv1/v2c/v3 for different levels of network management
Built-in HDMI-over-IP TX/RX extender management controller*
Intelligent Auto AV QoS for AV network*

* means optional. Order by request.

Hardware

Ethernet	Standards: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T IEEE 802.3z 1000BASE-X IEEE 802.3x Flow Control and Back Pressure IEEE 802.1d Spanning Tree IEEE 802.1w Rapid Spanning Tree IEEE 802.1s Multiple Spanning Tree IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1Q VLAN IEEE 802.1p Class of Service IEEE 802.1x User Authentication IEEE 802.3at / af Power over Ethernet (PoE)
Capacity	Mac Address: 16K MAC address table Jumbo Frame: 10KB Trunk Group: 8 Priority Queues: 8 VLAN Table: 4096 (VLAN ID Range) VLAN ID Range: 1 to 4094 Static IGMP Groups: 128 Dynamic IGMP Groups: 1024
Interfaces	RJ45 Ports: 10 / 100 / 1000BASE-T (X): 16 ports auto negotiation speed (Auto MDI / MDI-X function) Fiber Optic Ports: Mini-GBIC: 4 ports 1G / 2.5G / 10_gbps / 25G SFP+ auto-sensing socket with DDMI LED Indicators: System: PWR1 (Green), PWR2 (Green), Alarm (Red), Sys (Green) Ethernet port: RJ-45 Link / Speed, SFP Link Console: RS232 (RJ45 connector) DI / DO: 2 Digital Input (DI): Level 0: -30 ~ 2V / Level 1: 10 ~ 30V Max input current:8mA 2 Digital Output (DO): Open collector to 40 VDC, 200mA Relay Output: Current carry ability 1A@24VDC Reset Button: Yes
PoE	PoE Ports: Max 30W per-port: support IEEE 802.3at / af End-point, Alternative A mode PoE Budget: 240W (Standard model) 120W (-24V model) 80W@12V, 120W@24V, 240W@48V (-EV model) PoE Pin Assignment: Positive (VCC+): RJ-45 pin 1,2 Negative (VCC-): RJ-45 pin 3,6
Power	Input Voltage: Dual input for 44V ~ 56VDC (Standard model) Dual input for 24VDC (-24V model) Dual input for 12V ~ 57VDC (-EV model) Connector: 6-Pin Terminal Block Power Consumption: Max. 27W (full load w / o PoE)
Environmental Limits	Operating Humidity: 5% ~ 95% (Non-condensing) Operating Temperature: -20°C ~ 60°C / -4°F ~ 140°F (Standard model) -40°C ~ 75°C / -40°F ~ 167°F (-I model) Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F
Physical Characteristics	Housing: Metal case. IP-30, Dimension: 95.84 (W) x 135 (D) x 152 (H) mm Weight: 900 g Installation: DIN Rail, Wall Mount*
Regulatory Approvals	MTBF: 586082.5 hours EMI: FCC Class A EMS: CE EN55032 Class A CE EN55024 CE EN61000-4-2 CE EN61000-4-3 CE EN61000-4-4 CE EN61000-4-5 CE EN61000-4-6 CE EN61000-4-8 CE EN61000-6-2 Stability: IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration)
Warranty	5 years

Software

Link Aggregation	Static aggregation Dynamic aggregation (IEEE 802.3ad LACP) Maximum 8 groups (LAGs) and max 8 member ports per LAG
Jumbo Frame	Maximum 10K bytes
Broadcast / Multicast / Unicast Storm Suppression*	Storm suppression based on port bandwidth percentage Storm suppression based on PPS*
MAC Address Table	Static MAC address Blackhole MAC address MAC learning limit*
VLAN	IEEE 802.1Q Tag VLAN (up to 4094 VLANs) Port-based VLAN (up to 4094 VLANs)* MAC-based VLAN* Protocol-based VLAN IP subnet based VLAN QinQ (double-tag VLAN) VLAN Mapping (VLAN Translation)* Voice VLAN* MVRP
Spanning Tree	Support STP / RSTP / MSTP BPDU Guard and Root Guard
Loop Protect	Loopback detection and prevention
ERPS	ITU G.8032 Ethernet ring protection switching (ERPS)
DHCP	DHCP Client including option 66 / 67 DHCP Snooping including option 82 DHCP Relay including option 82 DHCP Server MAC based can assign IP address by specific host Port based can assign IP address by specific port
Mirroring	Local port mirroring Ingress, Egress or both direction per port Remote port mirroring: RSPAN*
Quality of Service	Port-based priority with 802.1p CoS priority override 802.1p CoS priority and IPv4 DSCP priority 8 Hardware queues per port Flexible queue scheduling algorithms including SP, WRR, and SP + WRR*
Bandwidth Control (Rate Limit)	Bi-directional Rate limit in percentage (Ingress and Egress) In the ingress direction, packet type (Broadcast / Multicast / Unicast packet) combination rules are allowed. Traffic shaping in egress*
ACL	Layer 2 to Layer 4 packet filtering Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP / UDP port, and VLAN* Bi-directional ACLs (Ingress and Egress) VLAN-based ACL issuing
Discovery Protocol	Link Layer Discovery Protocol (LLDP) and CDP (Cisco Discovery Protocol)
Multicast	IGMP Snooping v1 / v2 / v3 and MLD Snooping v1 / v2
Security	Hierarchical user management and password protection Supports up to 10 IP addresses to access the switch HTTPS for secure access to the web interface SSH 2.0 for secure shell to command line interface MAC-based authentication* 802.1X 802.1X with VLAN assignment* 802.1X dynamic access control list (ACL) based on RADIUS attributes* RADIUS and TACACS+ Authentication Guest VLAN* Support Port Isolation* AAA authentication Dynamic ARP Inspection*
SNMP & MIB	SNMP v1 / v2c / v3 and Trap. SNMP v1 / v2 providing light security by means of the community strings. SNMP v3 providing User-based Security Model (USM) and Transport Security Model (TSM)* Remote Monitoring (RMON) alarm, event, and history recording* Remote Monitoring (RMON) (RFC2819) Groups 1,2,3,9 RFC 1213 MIB II RFC 1157 SNMP MIB RFC 1573 IF MIB RFC 1757 RMON Private MIB
IP Stack (for managed interface)	Both IPv4 and IPv6 stack simultaneously
IPv6	Neighbor Discovery (ND)* IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP*
Configuration Import And Export	Readable text configuration file for system quick installation Support HTTP / HTTPs / FTP / FTP-SSL*/SFTP / TFTP backup and restore config file
Firmware	Upgrading via HTTP / HTTPs / FTP / FTP-SSL*/SFTP / TFTP
Management	Support CLI via SSH 2.0, Telnet and Console System log, alarming based on severity WEB UI management through HTTP / HTTPs NTP, SNTP System utilization and temperature alarming Ping, Tracert* Device Link Detection Protocol (DLDP)*

* means optional. Order by request.

Dimensions

Order Information

Model Name	P/N	Description
DVS-16MP-4Q	DVS-16MP-4Q	Dual 44 ~ 56VDC input -20°C ~ 60°C / -4°F ~ 140°F PoE per-port up to 30W; PoE total budget 240W
DVS-16MP-4Q	DVS-16MP-4Q-I	Dual 44 ~ 56VDC input -40°C ~ 75°C / -40°F ~ 167°F PoE per-port up to 30W; PoE total budget 240W
DVS-16MP-4Q	DVS-16MP-4Q-24V	Dual 9 ~ 36VDC input -20°C ~ 60°C / -4°F ~ 140°F PoE per-port up to 30W; PoE total budget 80W@12V, 120W@24V
DVS-16MP-4Q	DVS-16MP-4Q-24V-I	Dual 9 ~ 36VDC input -40°C ~ 75°C / -40°F ~ 167°F PoE per-port up to 30W; PoE total budget 80W@12V, 120W@24V
