WDG0200-1L-1ac-2S
Industrial 2x 1GE LTE Wireless Router w/ 2.4G/5G Dual Band 802.11a/b/g/n/ac Wi-Fi
- 2x GE ports can be configured as LAN or WAN interface
- Dual band (2.4G and 5G) 802.11a/b/g/n/ac Wi-Fi with 3x3 SU-MIMO technology with SMA type connectors, up to 3 optional antennas
- 3G support UMTS/HSPA/HSPA+, 4G support LTE CAT6 with 300 Mbps downlink, 50 Mbps uplink
- Load balancing mechanisms for WAN interface
- Support VRRP to increase network availability and reliability
- Redundant dual DC input power 12V to 48V, max 1.5A
- Firewall support DoS protection, IP address filter, Mac address filter, source port filter and destination port filter
- DHCP server/client/relay**, support addition option 66**/82** for network security
- Logging event and warning by exception through SMS, e-mail, SNMP trap and relay output automatically
- Software upgrade via TFTP,HTTP/HTTPs also support redundant firmware** to avoid in case of upgrade failure

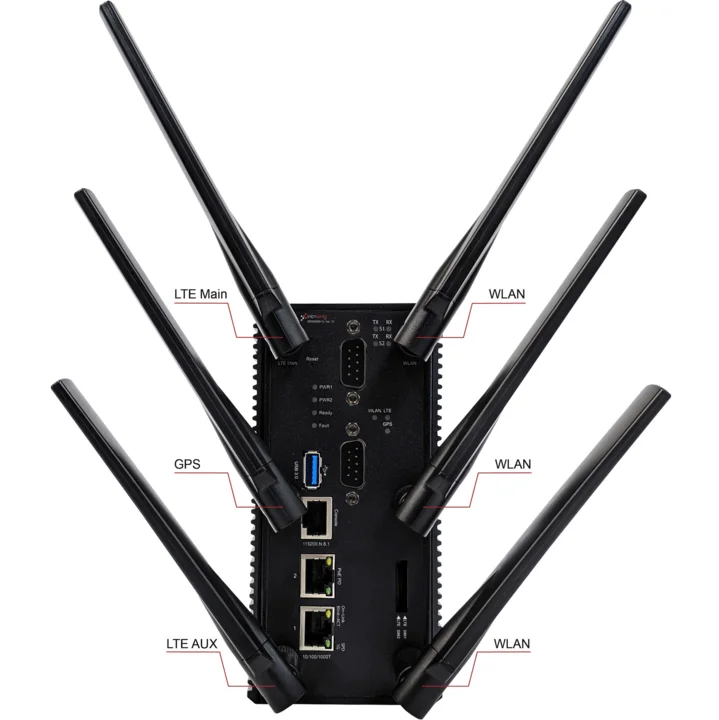

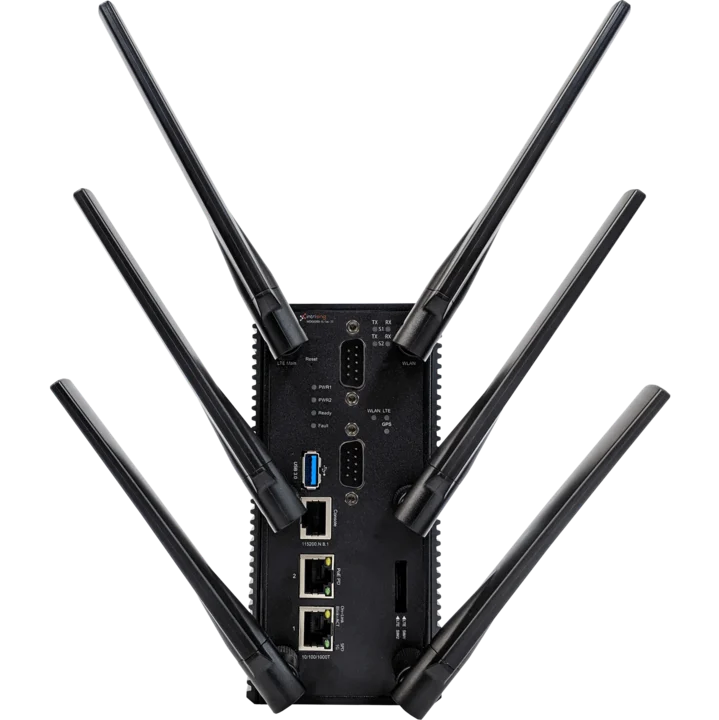

IntrisingTM WDG0200-1L-1ac-2S
IntrisingTM WDG0200-1L-1ac-2S is a high performance wireless router build-in 2x GE ports, one dual-band Wi-Fi module and one LTE module. The wired GE ports can be configured as LAN or WAN port, and support lots of protocol such as PPPoE, DHCP client, static IP. Wi-Fi can be used as access point (AP) or station (client) mode providing an easy and flexible way to build up a wireless environment. Further, Wi-Fi bridge mode is also provided. 4G LTE CAT6 up to 300 Mbps downlink / 50 Mbps uplink and back forward compatible 3G UMTS/HSPA/HSPA+.In the redundancy, VRRP can increase availability and reliability via automatic choice master default gateway in network topology. If the master is broken, slaves will be woke up and replace it quickly. Load balancing is the other feature for multiple WAN redundancy and traffic optimization, that support four mechanisms for combination multiple WAN, such as fixed, failover, priority and round robin. It can help to fully used WAN resource.Other functions including port based DHCP server, MAC based DHCP server and option 82** for DHCP relay. The network discovery support LLDP and CDP (Cisco Discovery Protocol) that help scan and show whole network topology. The firewall support DoS protection, IP address filter, Mac address filter, source port filter and destination port filter, also include DMZ and port forwarding for virtual server deployed. In the security sensitive application, WDG0200-1L-1ac-2S supports a lot of popular VPN and tunneling technology, such as IPSec, L2TP over IPsec client, OpenVPN client and GRE.
Dual power DC input
WDG0200-1L-1ac-2S supports dual DC power supplies DC 12V to 48V input to increase the network reliability.
Dual gigabit WAN ports and load balancing with four mechanisms
WDG0200-1L-1ac-2S provides two gigabit ethernet WAN port that work concurrently. Also support four algorithm to scheduling WAN port traffic, include fixed, failover, priority and round robin that help to appropriate used WAN bandwidth.
LTE Cat6 backward compatible UMTS/HSPA/HSPA+ and GNSS
Compatible 3G/4G LTE Cat6 up to 300 Mbps downlink and 50 Mbps uplink. WDG0200-1L-1ac-2S supports lots of LTE band include APAC, EMEC and Worldwide. GNSS support four types, GPS, GLONASS, Galileo and BeiDou, that can report location by latitude and longitude, also include speed, height, satellite number and signal.
VRRP
VRRP let more availability and reliability in the network. VRRP can automatically choose one router as default gateway (master) and let others as standby (slave).
2.4G & 5G Dual Band Wi-Fi
Support 801.11a/b/g/n/ac Wi-Fi, maximum three antenna with 3x3 MIMO, bandwidth up to 1300 Mbps.
Event log and Event Action
WDG0200-1L-1ac-2S has many useful log for network trouble shutting. Once out of the situation sending SMS**, e-mail, SNMP trap or syslog to the manager immediately.
Port/MAC based DHCP server, option 82** DHCP Relay and IPv6 DHCP server**
MAC based DHCP server can assign dedicated IP address by client’s MAC Address. Option 82 can assign IP address by port for multiple switches with single DHCP option 82 server.
Compare Table
| LTE Router | Access Point | VPN Router | |||||
|---|---|---|---|---|---|---|---|
 |
 |
|
 |
 |
 |
 |
|
| LAN | 4 * Giga Copper Port | 4 * Giga Copper Port | Shared 2 * Giga Copper Port | Shared 2 * Giga Copper Port | Shared 2 * Giga Copper Port | Shared 2 * Giga Copper Port | 4 * Giga Copper Port |
| WAN | 2 * Giga Copper Port | 2 * Giga Fiber Port | 2 * Giga Copper Port | ||||
| Wi-Fi (2.4G/5G) | - | - | |||||
| 3G/4G | - | - | |||||
| GPS | - | - | |||||
| PoE | - | - | - | - | |||
| Modbus | - | - | - | - | |||

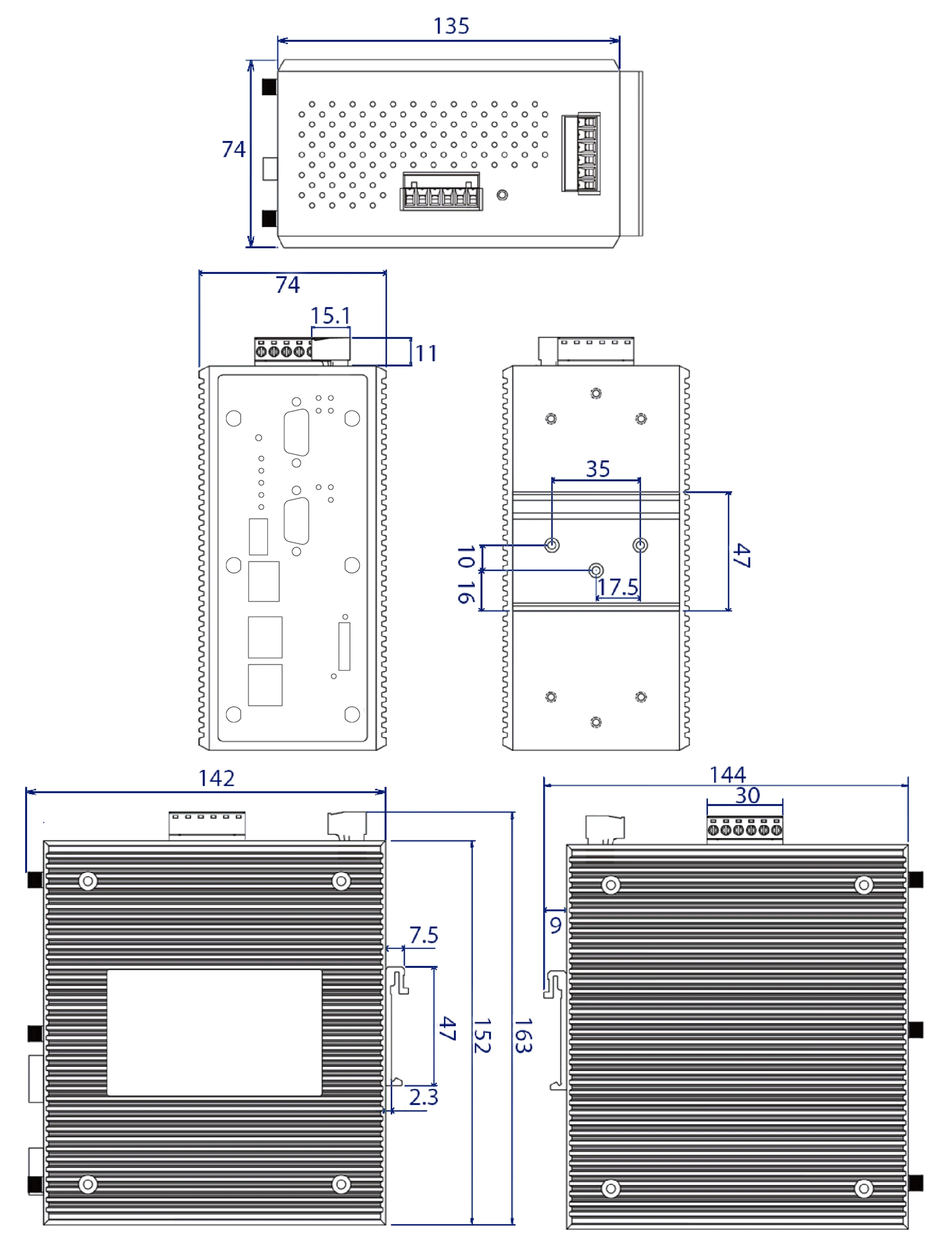

Dimensions
